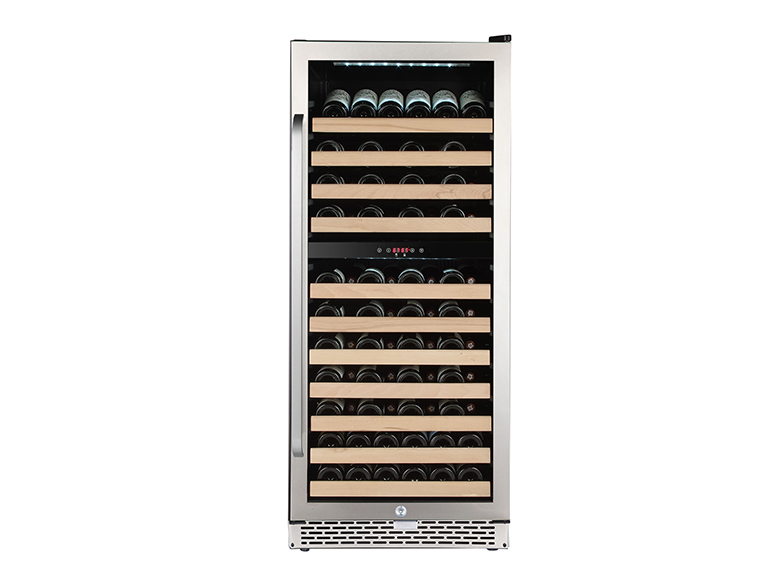

The JC-275A2EQ is a large-capacity 92 bottle dual zone wine cooler designed for built-in or freestanding installation. Two independently controlled temperature zones allow red, white and sparkling wines to be stored or served under different temperature conditions within one cabinet.
Measuring 595 × 570 × 1400 mm, this compressor wine cooler combines substantial storage capacity with a space-efficient 595 mm-wide cabinet. Front exhaust ventilation allows the unit to be integrated into kitchen cabinetry, wine bars, restaurants, hotel service areas or retail wine displays.
A white glass door with stainless steel trim creates a clean, premium appearance, while wooden rack shelves provide stable and organized bottle storage. Digital temperature displays, automatic defrosting and internal fan circulation make the JC-275A2EQ suitable for both residential wine collections and commercial wine service.
| Item | Specification |
|---|---|
| Model | JC-275A2EQ |
| Product Type | Dual Zone Compressor Wine Cooler |
| Installation | Built-In or Freestanding |
| Bottle Capacity | Up to 92 bottles |
| Temperature Zones | 2 independent zones |
| Temperature Range | 5–22°C / 40–72°F |
| Cooling System | Compressor cooling |
| Air Circulation | Internal fan-forced circulation |
| Ventilation | Front exhaust ventilation |
| Overall Dimensions | 595 × 570 × 1400 mm |
| Door Design | White glass door with stainless steel trim |
| Door Opening | Reversible door |
| Shelving | Wooden rack shelves |
| Temperature Control | Digital temperature controls |
| Temperature Display | Celsius and Fahrenheit |
| Defrosting | Automatic frost-free operation |
| Applications | Residential and commercial wine storage |
Bottle capacity may vary according to bottle shape, bottle diameter and shelf arrangement.
The cabinet accommodates up to 92 wine bottles, providing practical storage for growing private collections, restaurants, hotels, wine retailers and hospitality projects. Wooden shelving keeps bottles arranged horizontally and makes different wine varieties easier to organize and access.
Two separately controlled cooling zones allow users to create different environments for red and white wines. Each zone can be adjusted between 5°C and 22°C, helping operators organize wines according to serving or storage requirements.
The digital displays make it easy to view and adjust the temperature of each zone without opening the door unnecessarily.
Front exhaust ventilation directs warm air away from the cabinet, allowing the wine cooler to be installed within suitable cabinetry. The finished cabinet and freestanding design also allow the unit to be positioned independently in a dining room, wine room, restaurant or commercial display area.
Adequate installation clearances should always be maintained according to the final installation instructions.
The compressor cooling system provides stable refrigeration for a large wine collection. Internal fans circulate cooled air throughout the cabinet to reduce temperature differences between shelves and maintain more consistent conditions in both zones.
Wooden rack shelves provide stable support for wine bottles while improving the cabinet’s appearance. Compared with basic wire racks, the wooden shelves create a more refined display for premium wines and help reduce direct bottle movement during normal operation.
The frost-free system automatically manages ice formation inside the cabinet, reducing routine maintenance and helping maintain efficient air circulation throughout both temperature zones.
The white glass door and stainless steel trim give the wine cooler a modern appearance suitable for contemporary kitchens, restaurants, hotel bars and retail spaces. The glass door allows the wine selection to remain visible while the stainless steel handle provides convenient access.
The reversible door provides greater flexibility during installation. Depending on the final site layout, the opening direction can be configured to improve access and prevent interference with nearby cabinetry or equipment.
The JC-275A2EQ 92 bottle wine cooler is suitable for:
Residential kitchens and private wine rooms
Restaurants and wine bars
Hotels, resorts and hospitality projects
Wine shops and retail displays
Clubs and entertainment venues
Commercial kitchens and catering facilities
Wine distributors and appliance wholesalers
Its combination of dual-zone temperature control, large bottle capacity and built-in installation capability makes it suitable for projects that need to store and display multiple wine varieties in one cabinet.
Different wines are commonly served and stored under different temperature conditions. A single-zone cabinet maintains one temperature throughout the interior, while a dual-zone wine refrigerator allows two temperature settings to be managed in the same appliance.
The JC-275A2EQ gives users the flexibility to keep white and sparkling wines cooler in one section while maintaining red wines at a different selected temperature in the other. This is particularly useful for restaurants, wine bars and collectors with mixed wine inventories.
With its 595 mm width and front ventilation system, the JC-275A2EQ can be integrated into suitable cabinetry without relying only on side or rear heat dissipation. It can also be used as a freestanding wine cooler when built-in installation is not required.
For commercial buyers, Candor can discuss available product configurations based on the destination market, required voltage, plug type, branding, packaging and order quantity.
The wine cooler can hold up to 92 bottles. Actual capacity may vary depending on bottle size, bottle shape and shelf arrangement.
Yes. It has two independently controlled temperature zones for organizing red, white and sparkling wines under different temperature settings.
The adjustable temperature range is 5–22°C, equivalent to approximately 40–72°F. Temperature information can be displayed in either Celsius or Fahrenheit.
Yes. The front exhaust ventilation system supports built-in installation within appropriately designed cabinetry. Installation clearances should follow the product manual.
Yes. The JC-275A2EQ is designed for either built-in or freestanding use.
No. The wine cooler uses automatic frost-free operation to reduce ice buildup and simplify maintenance.
Yes. The reversible door design provides additional flexibility for different kitchen, bar and commercial installation layouts.
Yes. Its 92-bottle capacity, dual temperature zones and front ventilation make it suitable for restaurants, hotels, wine bars, clubs and other hospitality environments.
Looking for a 92 bottle dual zone wine cooler for your product range or commercial project?
Contact Candor with your target market, estimated order quantity, voltage, plug type and branding requirements. Our team will confirm available configurations, technical documents, production details and factory quotation for the JC-275A2EQ.
